PW100系列 / PW100 Series

《产品介绍 note》：

产品编码 Code No.	倍比 Ratio	输出压力 Outlet Pressure(Ph*)	吐出量(往返一次) Fluid volume for cycle (L/cycle)	耗气量(往返一次) Consumption for cycle (L/cycle)
PW100003T	3:1	2Pd+Ps	4.47	(1.586xPd+1.639)/1.033
PW100004	4:1	3Pd+Ps	2.24
PW100004T	4:1	3Pd+Ps	2.85
PW100006	6:1	5Pd+Ps	1.44
PW100007T	7:1	6Pd+Ps	1.60
PW100011	11:1	10Pd+Ps	0.81
PW100016	16:1	15Pd+Ps	0.56
PW100025	25:1	24Pd+Ps	0.36
PW100038	38:1	37Pd+Ps	0.23



* PH= Outlet Pressure / ** PD= Driven Pressure / *** PS = Supply Pressure / Pressure Ratio=PH/PD / signal pressure≥ Pd pressure』



附注：设定驱动压(PD) = 6 kg/cm2, 被压缩压(PS) = 6 kg/cm2压力时,则『每分钟PH输出量』及『驱动压(PD)往返一次耗气量』所得到的数值如表格内所载明.

Note :If Driven Pressure (PD) is 6 kg/cm2, Supply Pressure (PS) is 6 kg/cm2 pressure, the 『Per minute PH of output』and 『Driven pressure consumption by cycle』the resulting values in the form described.

举例:当气体增压泵浦规格为PW100025,在PD=6 kg/cm2且 PS=6 kg/cm2的压力时,则『每分钟PH输出量』所得之计算数值为:20 l/min;另外『驱动压(PD)往返一次耗气量』所得之计算数值为10.8L

For example: When High Pressure Gas Booster specifications for PW100025, in the PD is 6 kg/cm2 and PS is 6 kg/cm2 pressure, the 『Per minute PH of output』of calculated values are: 20 l/min; Additionally 『Driven pressure consumption by cycle』of calculated values to 10.8L.





外观尺寸 Dimensional Features(单位:mm)

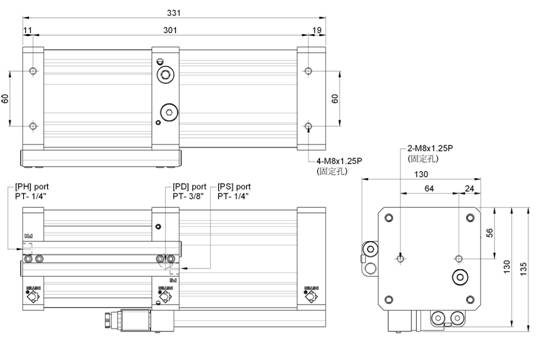

PW1000011E/PW100016E/PW100025E/PW100038E 系列(电磁阀起动)

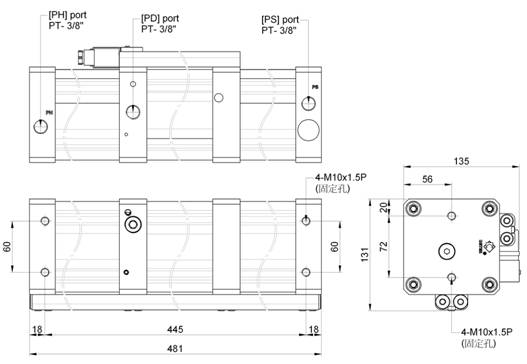

PW100003T/PW100004/PW100004T/PW100006/PW100007T(气动起动)



DPW100004E/DPW100006E/DPW100011E(电磁阀起动)

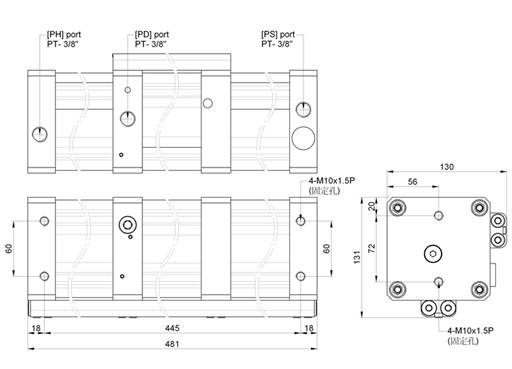

PW1000011/PW100016/PW100025/PW100038 (气动起动)
