DPW100系列 / DPW100 Series

《产品介绍 note》：

产品编码 Code No.	倍比 Ratio	输出压力 Outlet Pressure(Ph*)	吐出量(往返一次) Fluid volume for cycle (L/cycle)	耗气量(往返一次) Consumption for cycle (L/cycle)
DPW100002	2:1	1Pd**+Ps***	8.8	(1.602xPd+1.655)/1.033
DPW100004	4:1	3Pd+Ps	2.24
DPW100006	6:1	5Pd+Ps	1.43
DPW100011	11:1	10Pd+Ps	0.8



* PH= Outlet Pressure / ** PD= Driven Pressure / *** PS = Supply Pressure / Pressure Ratio=PH/PD / signal pressure≥ Pd pressure



附注：设定驱动压(PD) = 6 kg/cm2, 被压缩压(PS) = 6 kg/cm2压力时,则『每分钟PH输出量』及『驱动压(PD)往返一次耗气量』所得到的数值如表格内所载明.
Note :If Driven Pressure (PD) is 6 kg/cm2, Supply Pressure (PS) is 6 kg/cm2 pressure, the 『Per minute PH of output』and 『Driven pressure consumption by cycle』the resulting values in the form described.
举例:当气体增压泵浦规格为DPW100004,在PD=6 kg/cm2且 PS=6 kg/cm2的压力时,则『每分钟PH输出量』所得之计算数值为:126 l/min;另外『驱动压(PD)往返一次耗气量』所得之计算数值为10.8L
For example: When High Pressure Gas Booster specifications for DPW100004, in the PD is 6 kg/cm2 and PS is 6 kg/cm2 pressure, the 『Per minute PH of output』of calculated values are: 126 l/min; Additionally 『Driven pressure consumption by cycle』calculated values to 10.8L.





外观尺寸 Dimensional Features(单位:mm)

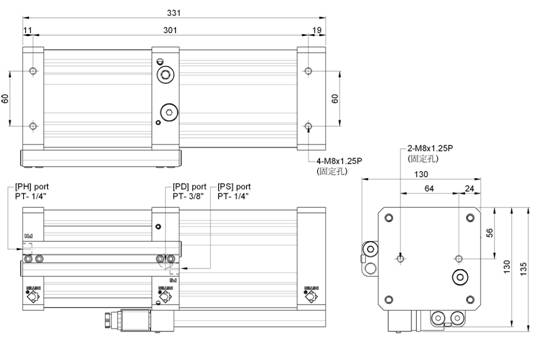

DPW100002E系列(电磁阀起动)





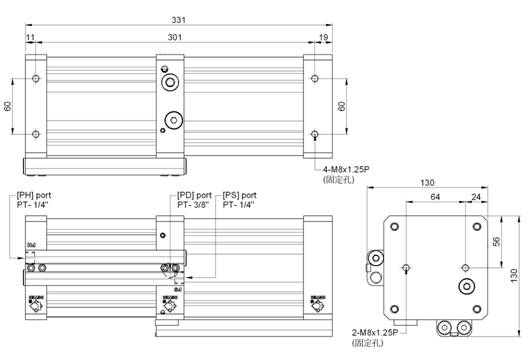

DPW100002系列(气动起动)

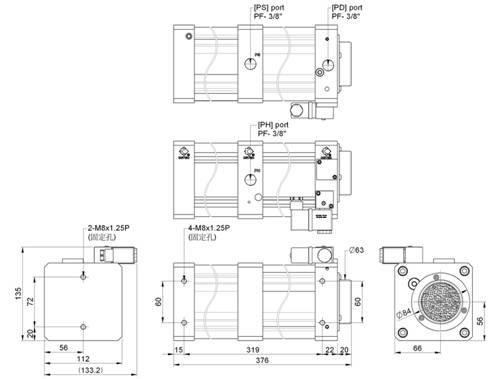

DPW100004E/DPW100006E/DPW100011E(电磁阀起动)

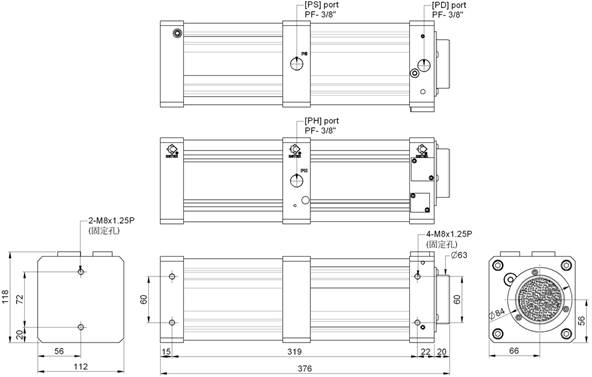

DPW100004/DPW100006 /DPW100011 系列(气动起动)
